infrared mode/infrared edge detection mode/dual light fusion mode
Infrared Thermal device displays different color responses according to different environmental measurements
when not enter any setting interface , the black center point on the screen represents the temperature value of the point , and the numerical value is displayed in the lower left corner of the screen

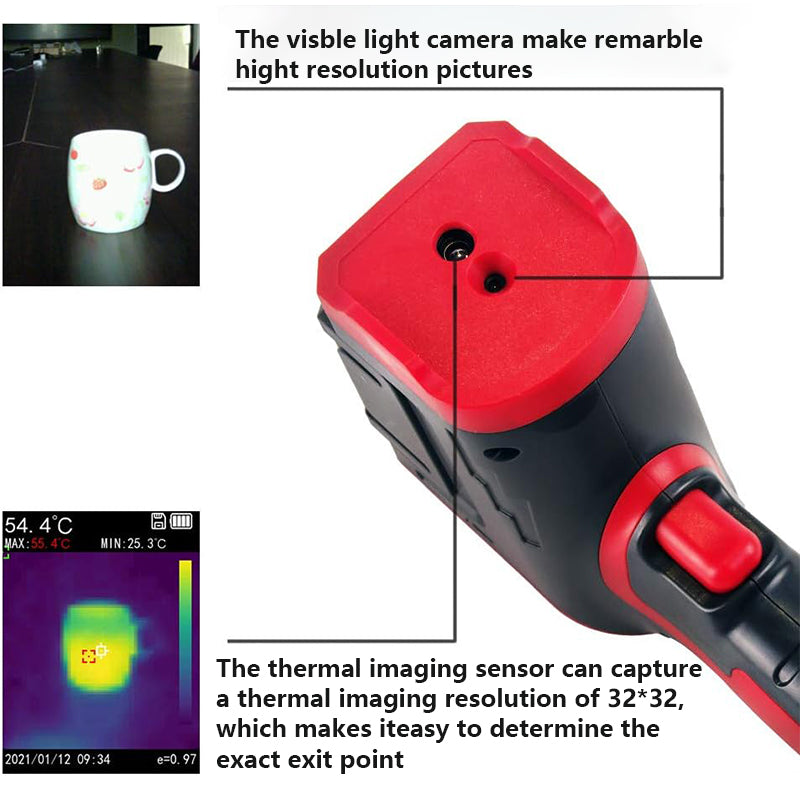

greater detail and accuracy with improved 32 x 32 resolution
| Thermal imaging technique | Thermal imaging resolution: 32*32（1024 pixels） Electronic shutter: No Visible light camera: 2 mega pixels Display resolution: Thermal imaging, thermal mixing, digital camera Color palettes: Ironbow,iridescence ,Grayscale Infrared spectral bandwidth: 8~14μm FOV :33° horizontal IFOV: 18 mrad Thermal imaging sensitivity: 150mk Frame rate: ≤9Hz Image format: BMP |

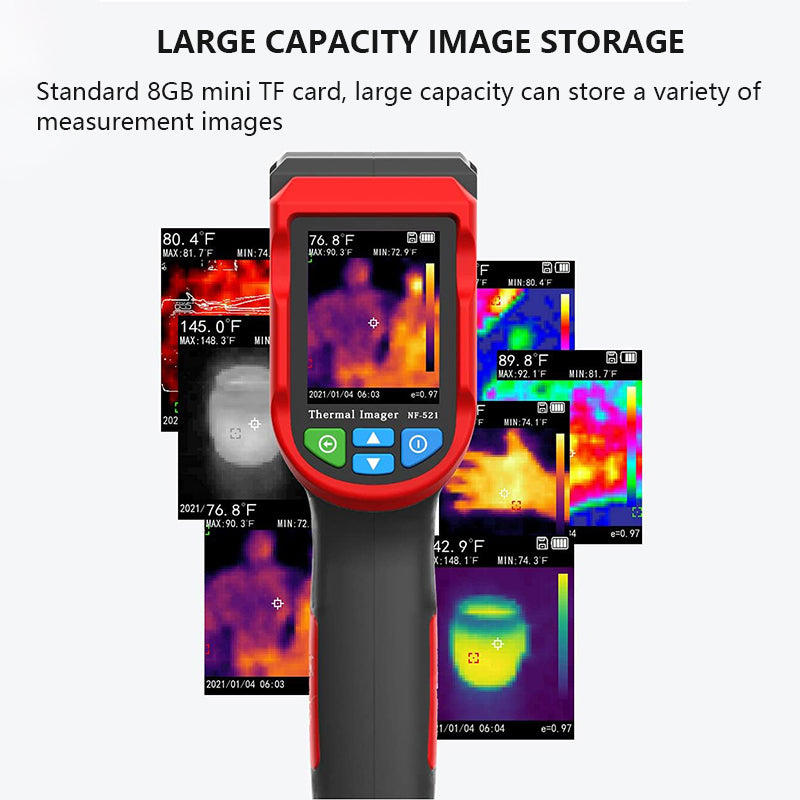

| Infrared temperature measurement | Temperature measurement range: -10~400℃ Basic accuracy: ±2% or ±2.0℃ Emissivity: adjustable 0.1~0.99 Measuring resolution: 0.1℃ Response time: 150ms Spectral band: 8~14um General parameters: Monitor: 2.4 & rdquo; TFT LCD Display resolution: 320*240 pixels SD card: 8GB TF card Working temperature: -10℃~45℃ |
