WIDE APPLICATIONS
Tilswall digital multimeter measures up to1000V DC voltage and 750V AC voltage, 10A DC/AC current, resistance,capacitance,frequency, continuity,duty cycle, diodes, live wire test,fuse disconnected ,suitable for electrical, automotive circuit, home users, enthusiasts, professional electricians and technicians
NON-CONTACT OPERATION
The non-contact voltage test of this digital multimeter is equipped with an audible and visual alarm, which can completely protect the safety of the user. You can test the AC voltage without using the test line at a certain safe distance. When using the NCV function, when the meter senses an AC signal, the indicator light will start flashing and the buzzer will sound a "beep"
MULTI-FUCTION

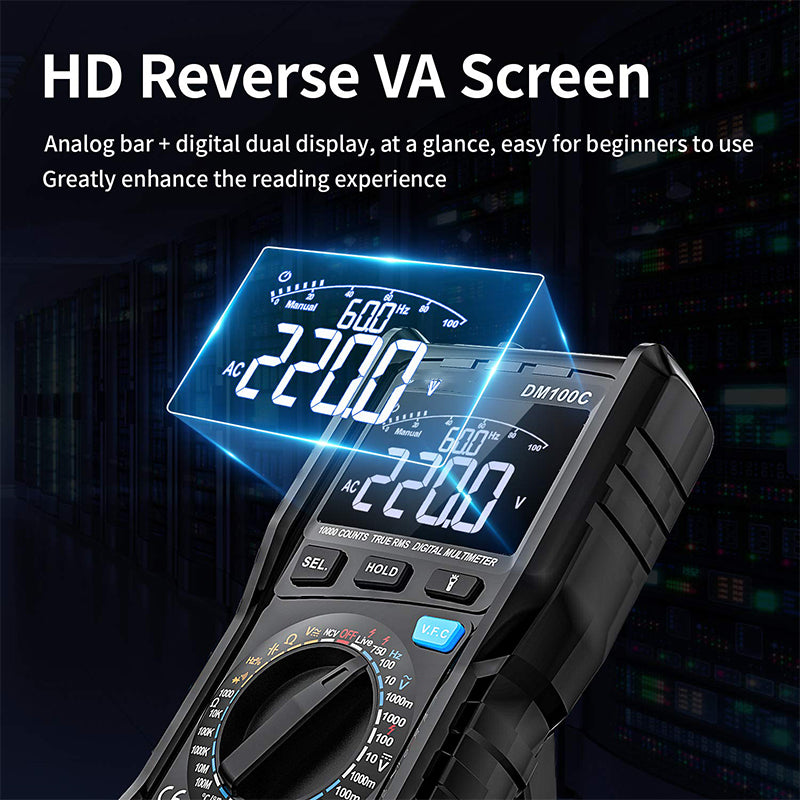

Reach 9999 counts T-RMS, NCV & VFC function, data hold, auto-off(15 minutes), battery voltage measurement, temperature measurement for liquids and air conditioning ports.This digital multimeter has a high quality 9999 LCD display with backlight function and flashlight to facilitate users to accurately read measurement results in places with dark lighting conditions

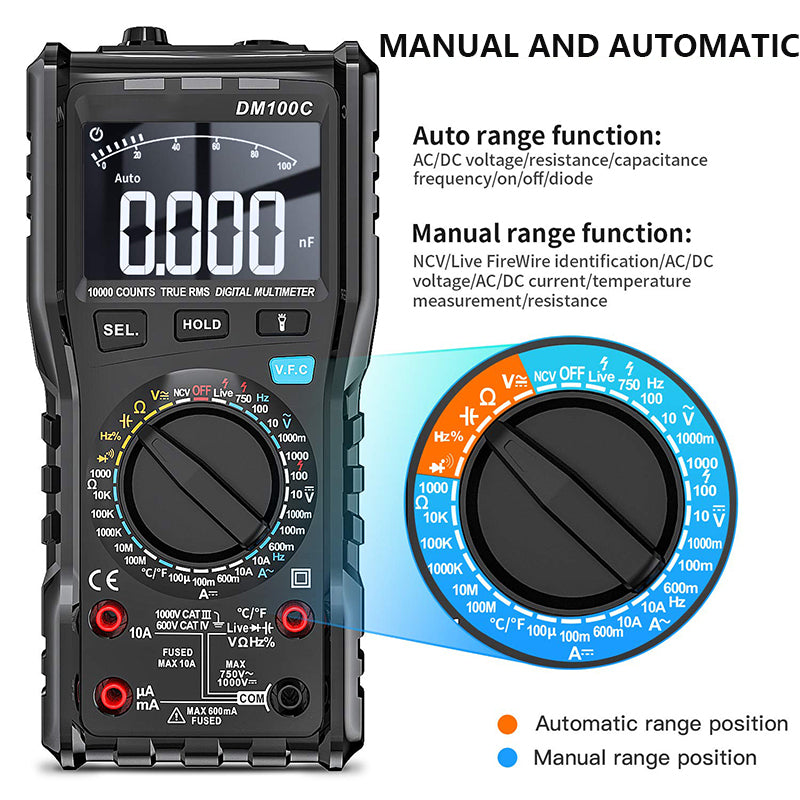

EASY TO USE

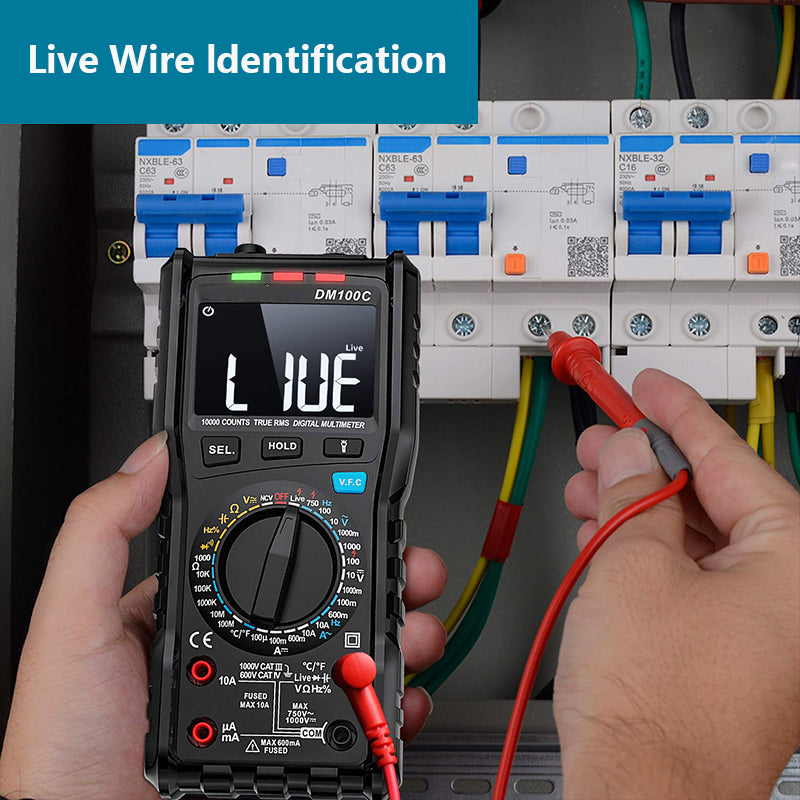

This voltage tester provides two measurement modes, automatic and manual. automatic mode measures AC/DC voltage/resistance/capacitance/frequency/on/off/diode.manual mode measures NCV/Live fire wire identification/AC,DC voltage/AC,DC current/temperature/resistance
SAFETY FIRST & AFTERSALES

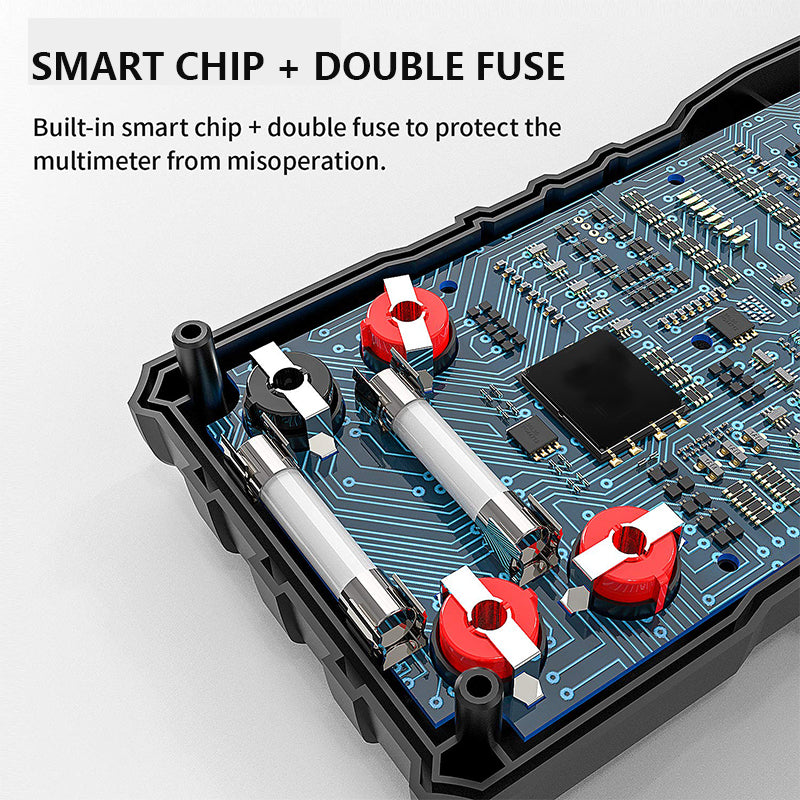

Safety standard IEC 61010, CAT IV 600V, CAT III 1000V and CE. Double insulation. High-voltage warning symbol, Overload protection (600V DC AC), Fuse blow alarm, Wrong insert alarm
Specifications:
Safety/Compliances: CAT IV 600V CAT III 1000V
DC Voltage: 0~999.9mV/9.999V/40V/99.99V/999.9V ±(0.5%+3)
AC Voltage: 0~999.9mV/9.999V/99.99V/750V ±(1.5%+3)
DC Current: 0~99.99μA/99.99mA/600mA/10A/ ±(1.0%+3)
AC Current: 99.99mA/600mA/10A/ ±(1.0%+3)
Resistance: 0~999.9Ω/9.999KΩ/99.99KΩ/999.9KΩ/9.999MΩ ±(0.8%+3) 99.99MΩ ±(1.2%+5)
Capacitance: 0~9.999nF ±(4.0%+30) 99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF ±(4.0%+3) 99.99mF ±(5.0%+3)
Frequency: 0~9.999Hz/99.99Hz/999.9Hz/9.9999KHz/99.99KHZ/999.9KHz/9.999MHz ±(1.0%+3)

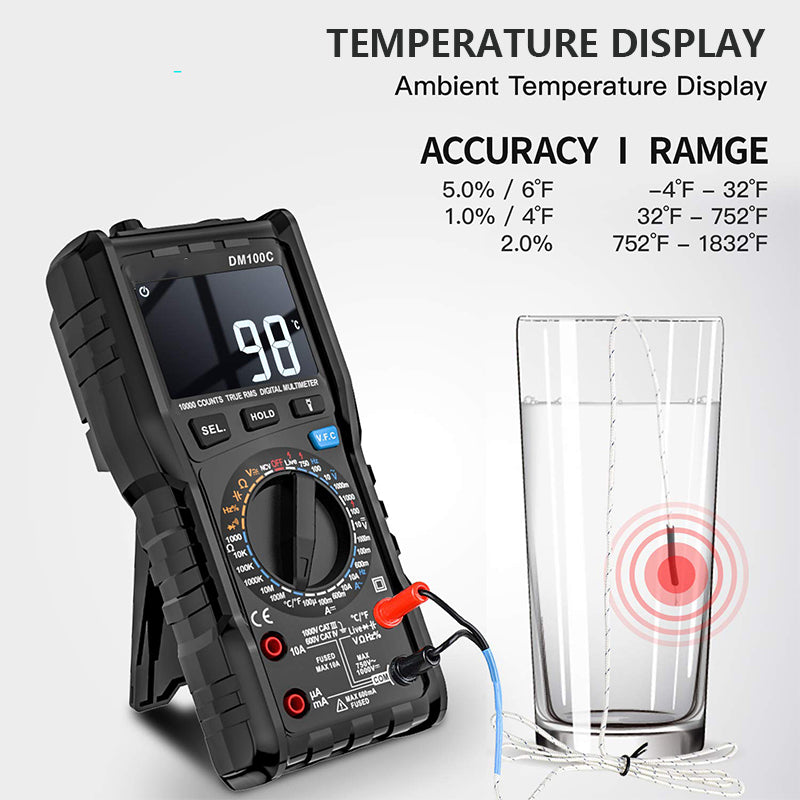

Temperature: -4℉~1832℉ (-20℃~1000℃) ±(1.0%+3)
