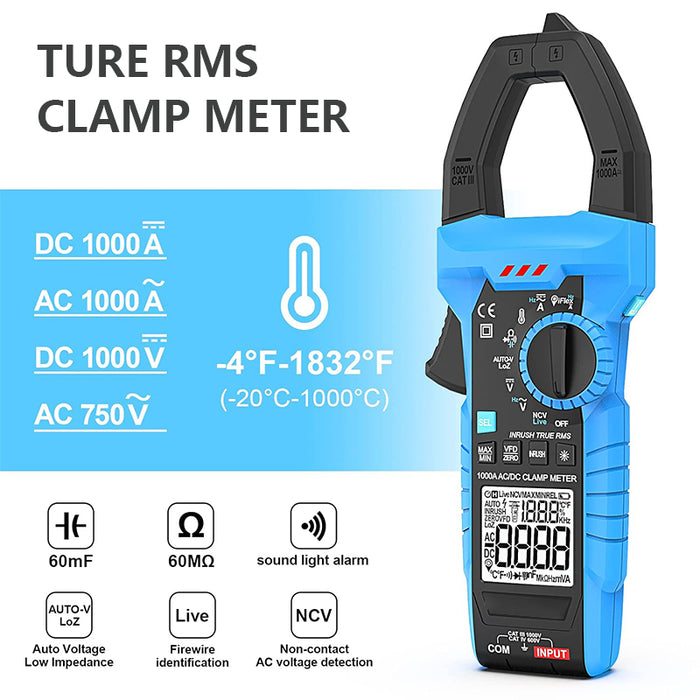

True-RMS 1000A Clamp Meter

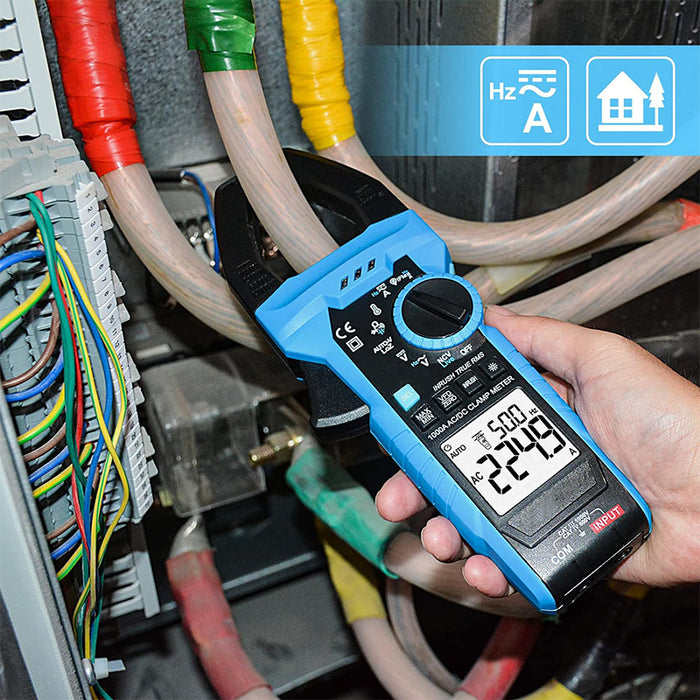

This clamp multimeter can accurately measure 1000 Amp AC/DC Current, 1000V DC 750V AC Voltage, Inrush current test, Live wire identification, Frequency, Resistance, Capacitance, Diode, Continuity, and Temperature. A perfect troubleshooting tool that will help you solve electrical problems in the car, labs factories, industrial or at home quickly and safely.

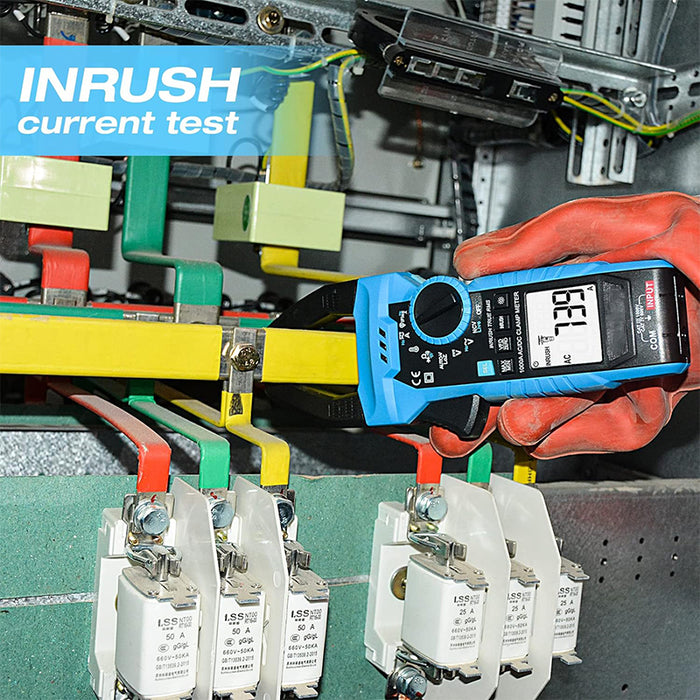

Inrush Current Meter
Measure the maximum current at the moment when the machine is started, which can help you locate a startup problem quickly, whether it's in the motor or in the starting circuit. set the gear to AC current gear,short press to enter INRUSH measurement. The measuring range of the inrush current is 1000A. (NOTE: The Inrush function can not test DC current, it is only available in AC current)
Advanced Functions
The clamp multimeter is designed according to ergonomics to made sure maximum comfort when using the clamp meter, has the characteristics of high reliability, high safety, automatic range, handheld clamp meter, etc. The Clamp Meter has Variable Frequency Drive Filtering (VFD) and low Input Impedance (LoZ) modes, which can provide higher accuracy readings.
Multi-fuction

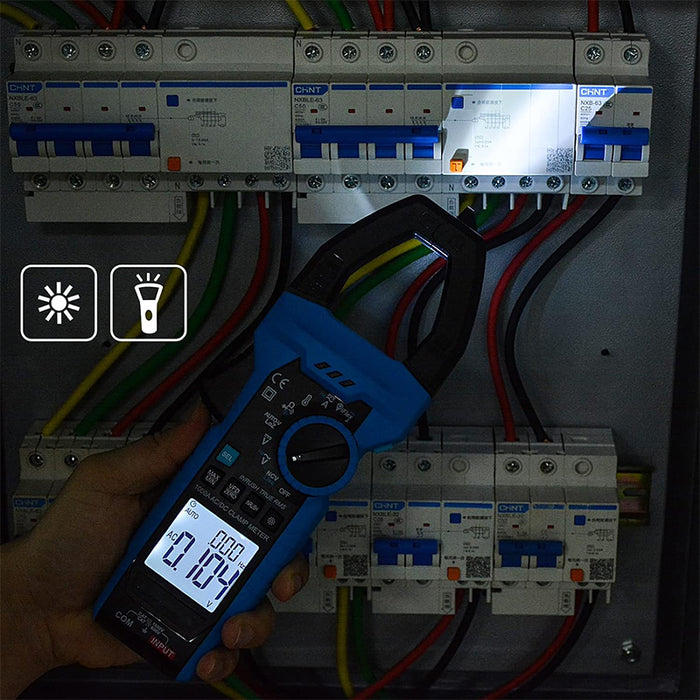

The clamp multimeter is compact design, easy to carry and store, Built-in Non-Contact Voltage (NCV) Detector can easily and quickly determine whether there is a voltage. A convenient LED flashlight illuminates a dimly lit area, Backlit LCD Display, Temperature Measurement for liquids and air conditioning ports, Low Battery Indication, Data Hold, Celsius/Fahrenheit degree, ZERO key, MAX/MIN value
Safety First
The clamp multimeter has passed overvoltage category CAT III 1000V, CAT IV 600V, and CE safety standards. and it has overload protection on all ranges. Double insulation protection. A reliable troubleshooter for industrial electrical testing, high-power equipment maintenance, and solar PV Projects. (Operation note：Please take off the cap before using the test leads.)
Screwdriver Shaft Type：
- DC current: 60A ±(2.0%+5) 600A/1000A ±(2.5%+5)
- AC current: 60A ±(2.0%+5) 600A/1000A ±( 2.5%+5)
- DC voltage: 600mV/6V/60V ±(0.5%+3) 600V/1000V ±(0.8%+3)
- AC voltage: 6V/60V ±(0.8%+5) 600V/750V ±(1.0%+5)
- Resistance: 600Ω/6kΩ/60kΩ/600kΩ ±(1.0%+5) 6MΩ/60MΩ ±(2.0%+5)
- Capacitance: 600nF/6μF/60μF/600μF/6mF/60mF ±(2.0%+5)

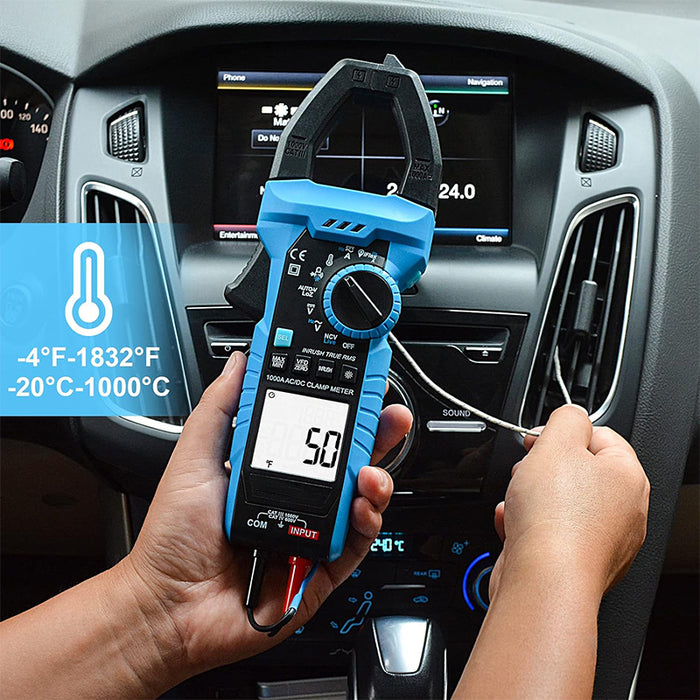

- Temperature: -20℃~1000℃ ±(2.0%+2) -4℉~1832℉ ±(2.0%+4)
- Diode: 0.15-2.5V
